The CD-H annular diffuser is molded from aluminum material, with a circular outer frame and an inner core composed of multiple rings. It is typically used for heating and cooling air supply. This diffuser is characterized by low resistance and a long airflow range, and is generally used in factory buildings and indoor structures with high ceilings. It features a novel and aesthetically pleasing design and can be used in conjunction with a plenum chamber.

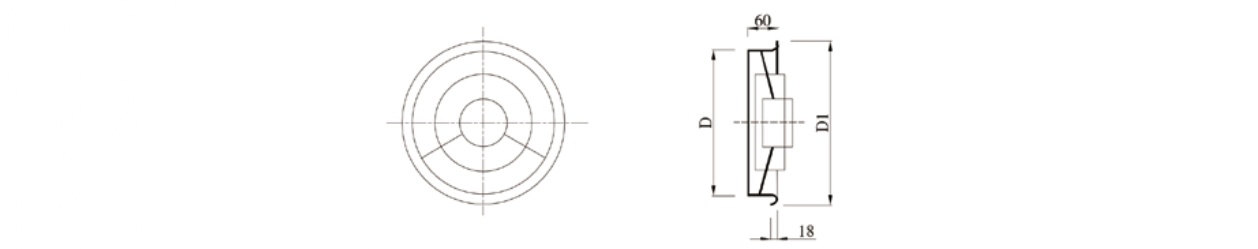

圆环型散流器规格表
序号 | D | D1 | 开孔尺寸 |
1 | Φ150 | Φ193 | D+15 |
2 | Φ200 | Φ243 | |
3 | Φ250 | Φ293 | |
4 | Φ300 | Φ342 | |
5 | Φ350 | Φ393 | |
6 | Φ400 | Φ442 | |
7 | Φ450 | Φ492 | |
8 | Φ500 | Φ542 |
