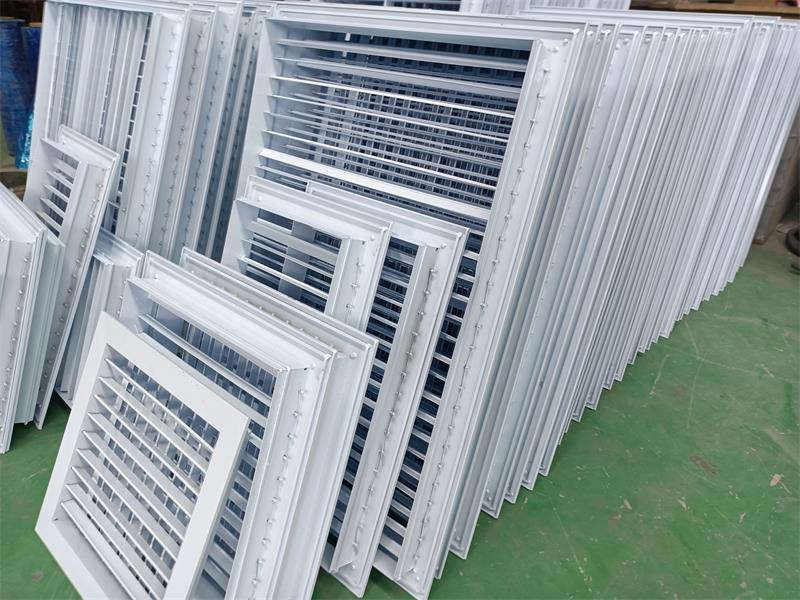

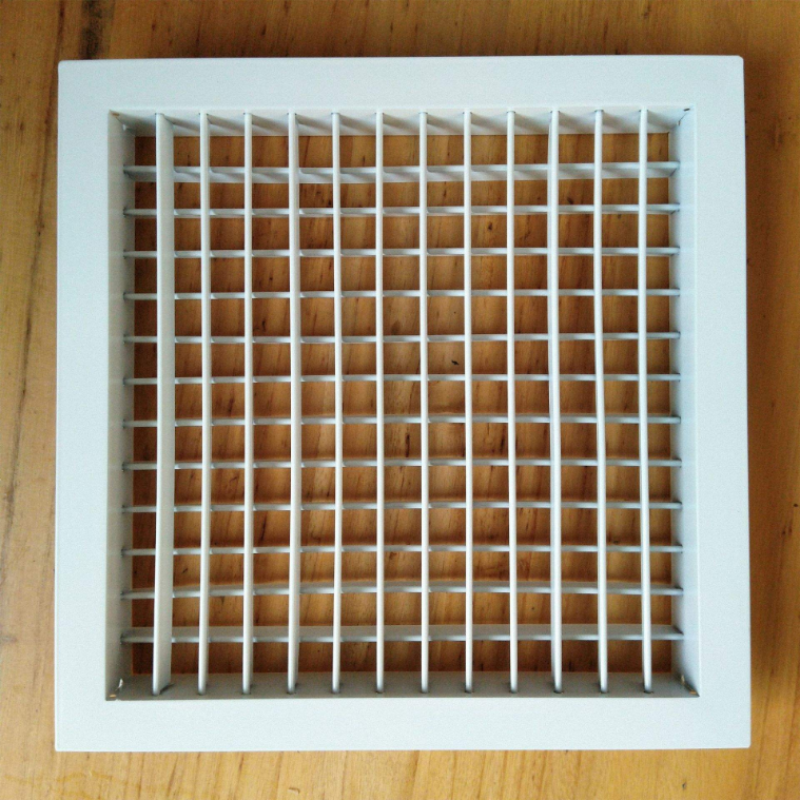

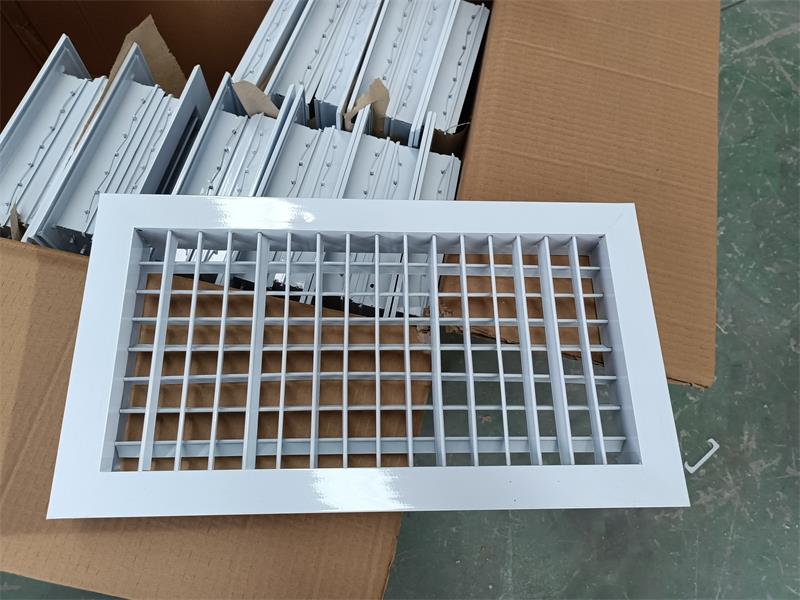

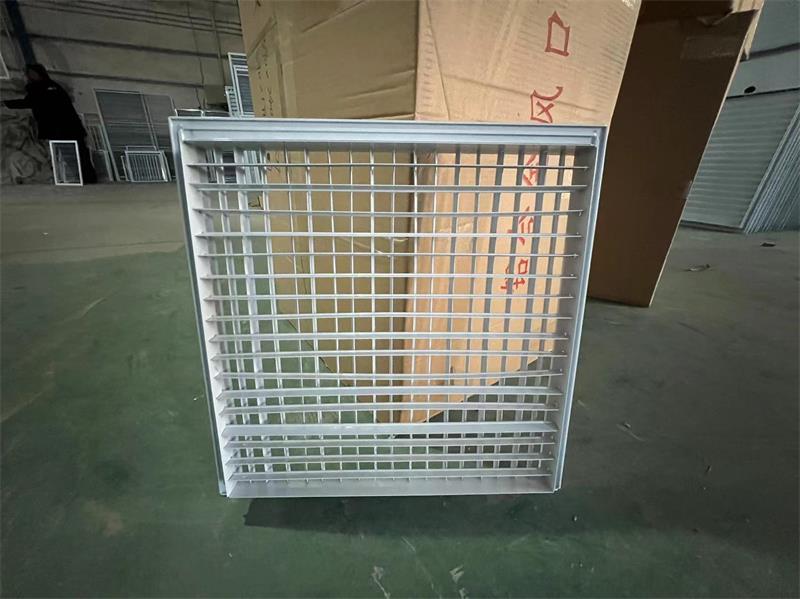

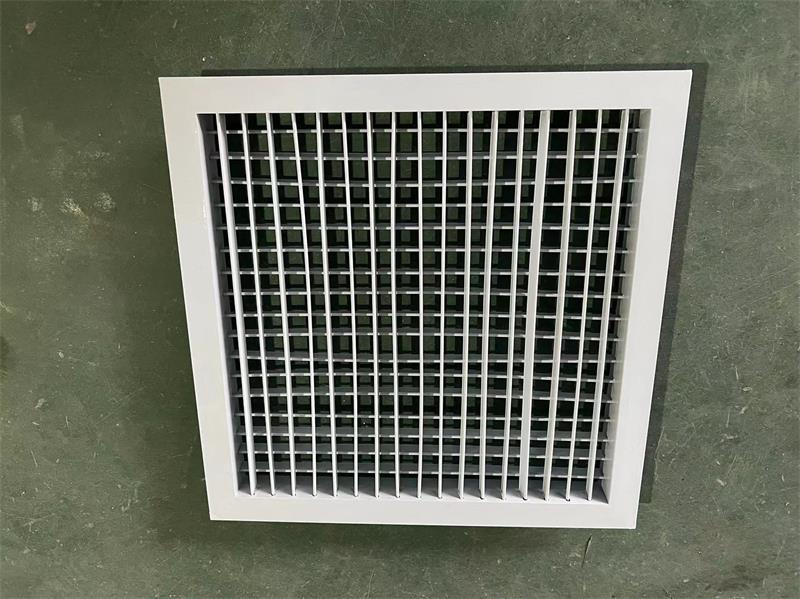

The double-layer grille air vent is a double-layer adjustable louvered air outlet. This series of air vents can be directly used with fan coil units or as a terminal unit in air conditioning systems. The two layers of blades are arranged in a cross-combination, and the blade angle can be adjusted arbitrarily within the range of 0°-180°. Different blade angles can be adjusted to achieve different air delivery distances and diffusion angles. A regulating valve can be added to the rear of the air vent to control the airflow and velocity within an appropriate range. The aluminum alloy air vent surface is anodized, and electrostatic powder coating can also be applied upon request.

注:外框边宽有25mm(H=40mm)、32mm(H=50mm)两种,用户订货时请注明,如无注明以32mm(H=50mm)供货

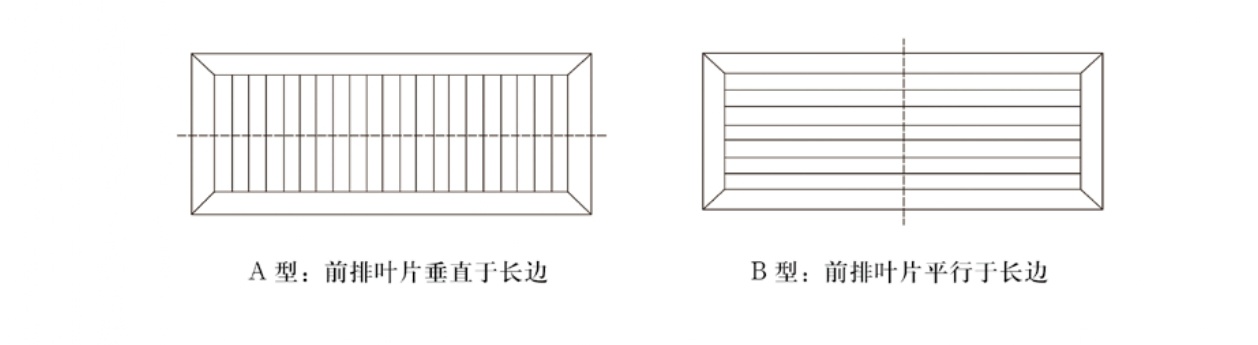

双层栅格风口结构形式有以下两种:

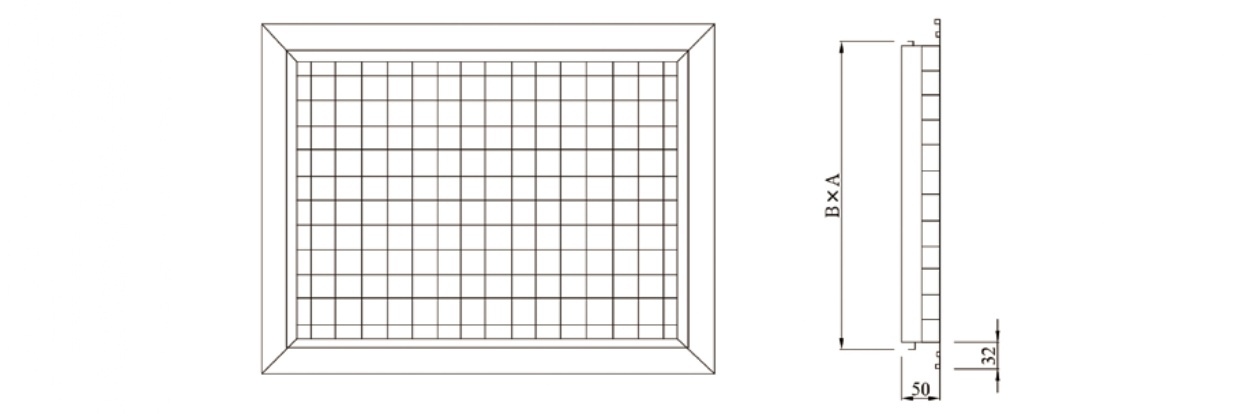

双层栅格风口示意图
注:风口结构形式请在订货时注明,若无注明则以A型供货。
