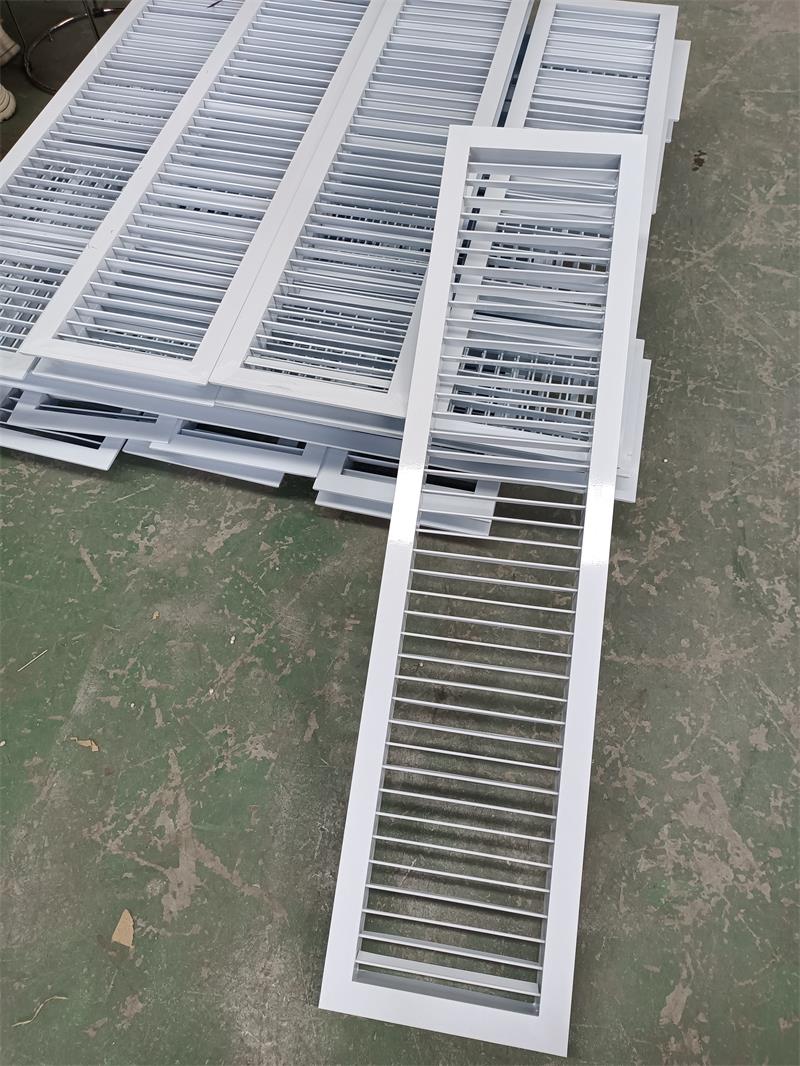

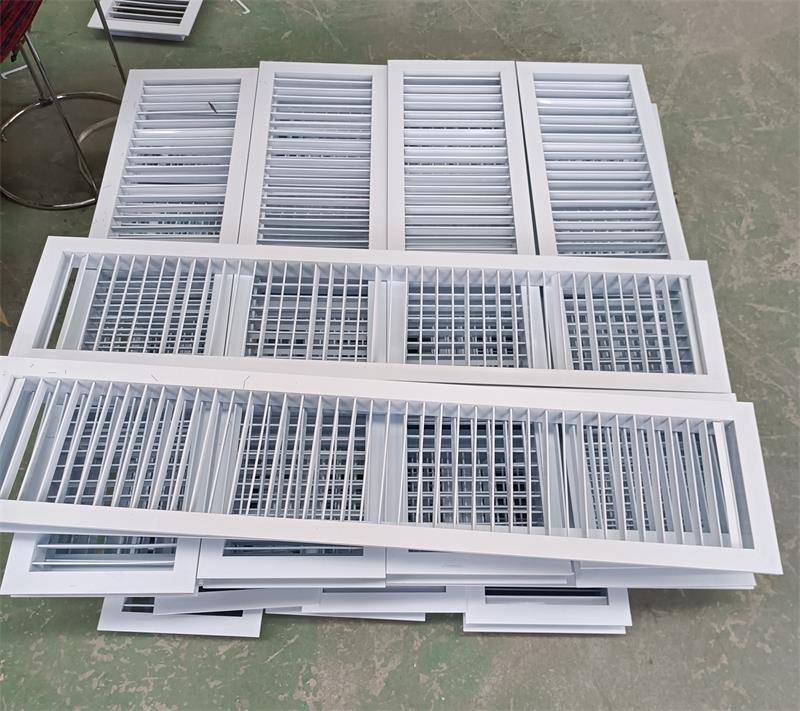

This single-layer grid air outlet is a single-layer adjustable louvered air supply outlet. This series of outlets can be directly used with fan coil units or as a terminal unit in air conditioning systems. The blade angle of this outlet can be adjusted arbitrarily within the range of 0°-180°. Adjusting the blade angle to different angles allows for different air delivery distances and diffusion angles. A regulating valve can be added to the rear of the outlet to control the airflow and velocity within an appropriate range. The aluminum alloy outlet surface is anodized, and electrostatic powder coating can also be applied upon request.
Note: The outer frame width is available in two types: 25mm (H=40mm) and 32mm (H=50mm). Please specify when ordering. Otherwise, 32mm (H=50mm) will be supplied.

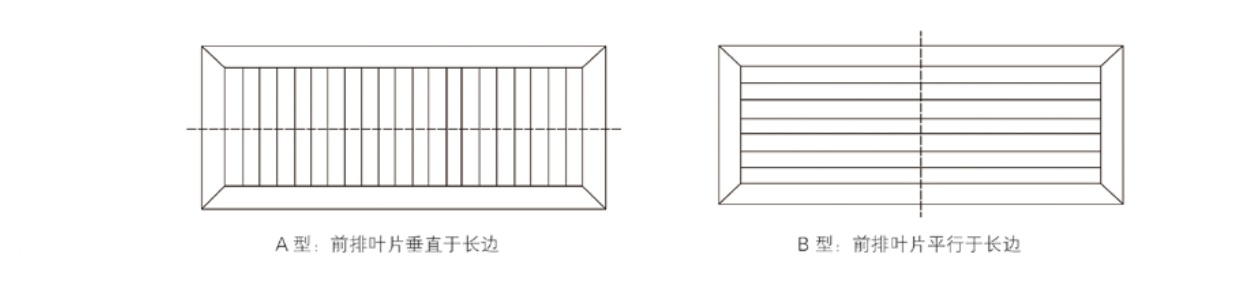

Single-layer grid air vent structures are available in the following two forms:

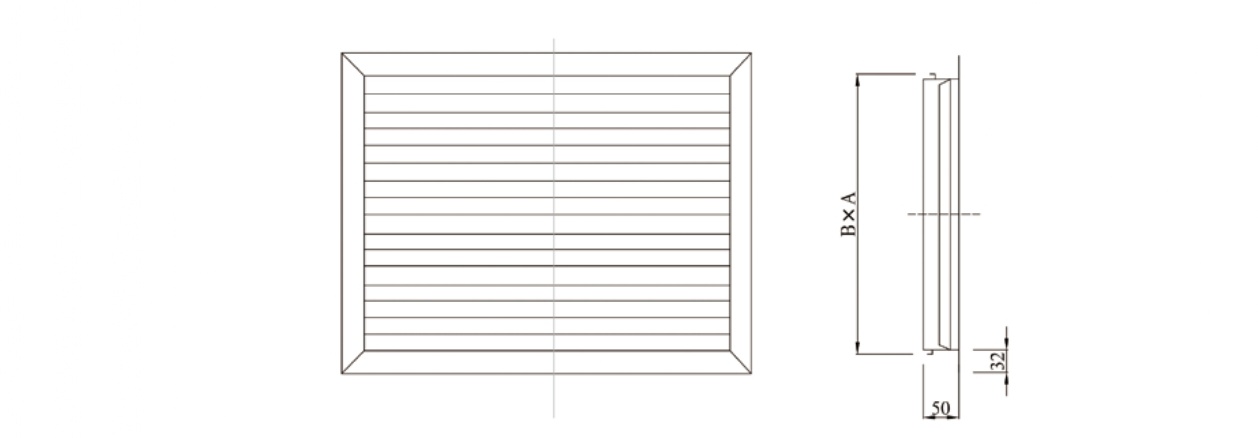

Schematic diagram of a single-layer grid air vent
Note: Please specify the air vent structure when ordering. If not specified, type A will be supplied.
